RV Suspension

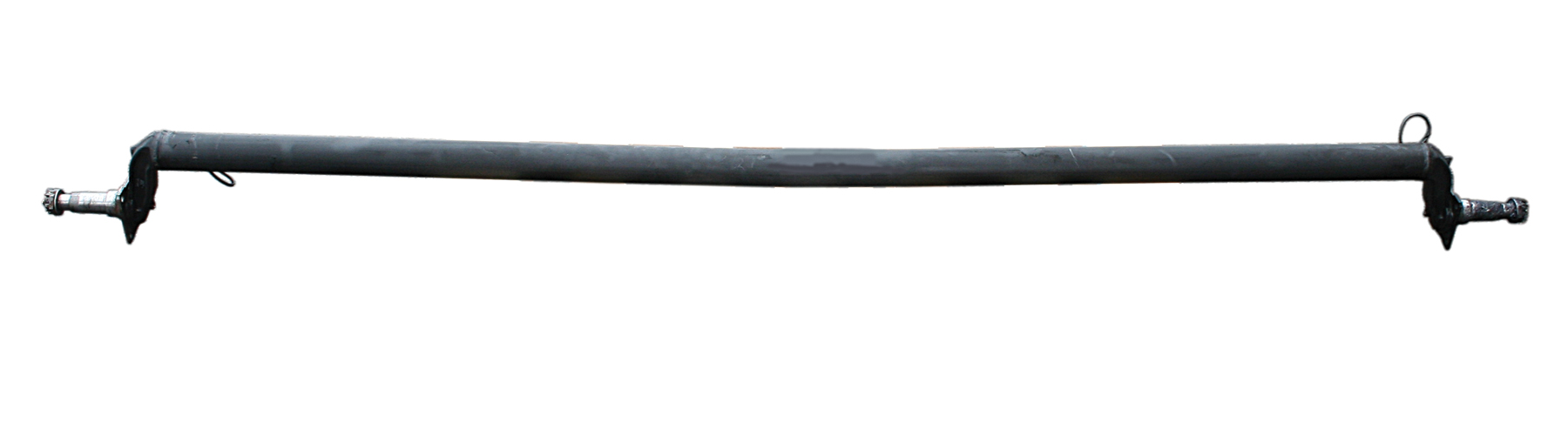

2-3/8" Axle with flange 3500lb 4" Drop 92" OVERALL LENGTH

Model #: 5656593
Includes spring seats - shipped loose. Spindle: 1-3/8" x 1-1/16"; Inner Bearing: 5768149; Outer Bearing: 5744649. *Min./Max. Distance Between Track and Spring Centers = 8-1/2" - 12-1/2". Difference between track and overall is 5" per axle. *Spring Seats must be attached to axle within these measurements. For Component Parts you must order: 5 Lug Hub #6533440; Tie Plate Kit #6523002; U-Bolts #7900042; Spring Seats #6513260.
